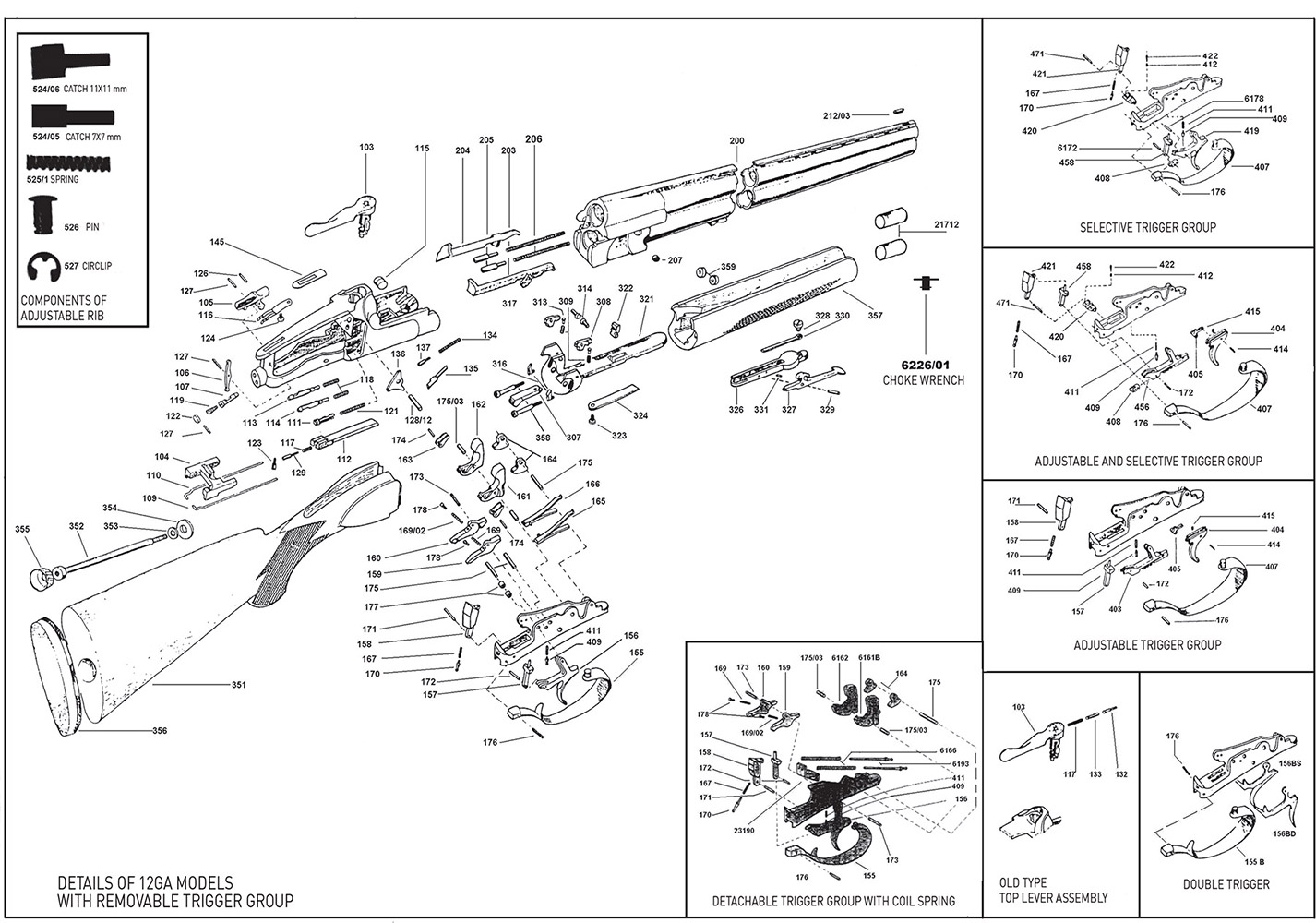

12GA with Removable Trigger Group
103 - Top lever
104 - Action bolt
105 - Safety
106 - Link trigger release
107 - Lock trigger plate
109 - Right ejector trip rod
110 - Left ejector trip rod
111 - Locking piece top lever
112 - Cocking bar
113 - Top firing pin
114 - Bottom firing pin
115 - Pivot
116 - Satefy spring
117 - Cocking bar spring
118 - Firing pin return spring
119 - Trigger plate lock pin
121 - Top lever return spring
122 - Trigger plate lock cap
123 - Cocking bar screw check
124 - Safety spring screw
126 - Safety botton pin
127 - Link pin
129 - Plunger trip
132 - Top lever release trip (old type)
133 - Top lever lock trip (old type)
134 - Top lever lock pin return spring
135 - Top lever stop plate release pin
136 - Top lever stop plate
137 - Top lever stop plate rel. sp. splunger
145 - Under safety
155 - Trigger guard
156 - Trigger
157 - Right release
158 - Connector
159 - Right sear
160 - Left sear
161 - Right hammer for flat springs
162 - Left hammer for flat springs
163 - Bridle
164 - Cocking foot
165 - Right hammer flat spring
166 - Left hammer flat spring
167 - Connector spring
169 - Right sear spring
170 - Connector plunger
171 - Connector pin
172 - Connector post pin
173 - Pivot sear trip - coil spring file pin rem. trigger group
174 - Bridle pin
175 - Sear retainer pin
176 - Trigger guard pun
177 - Sear retainer sleeve
178 - Sear plunger
200 - Barrels (see guns price list)
203 - Right ejector
204 - Left ejector
205 - Ejector spring plunger
206 - Ejector spring
207 - Ejector lock
307 - Cocking bar cam
308 - Right ejector sear
309 - Ejector sear spring
313 - Ejector sear plunger
314 - Ejector sear pin
316 - Ejector trip
317 - Left ejector sear
321 - Iron fored (see guns price list)
322 - Catch bolt
323 - Cocking bar lock screw
324 - Spring for catch bolt
326 - Latch plate
327 - Leva auget
328 - Lock screw for latch pl. lev. sp.
329 - Latch plate pin
330 - Return spring latch pl. lever
331 - Lock pin for latch plate lever
351 - Stock (see guns price list)
352 - Stock bolt
353 - Lock washer
354 - Plain washer
355 - Retainer guide
356 - Recoil pad
357 - Forend (see guns price list)
358 - Forend lock screw
359 - Forend lock bolt
403 - Adjustable trigger upper part
404 - Adjustable trigger lower part
405 - Adjustable trigger tab
407 - Trigger guard for adj. trigger
408 - Sear trip pin
409 - Adjustable trigger retaining pin
411 - Adjustable trigger return spring
412 - Selector pin spring (optional)
414 - Adjustable trigger tab pin
415 - Adjustable trigger tab pin spring
419 - Trigger for external selector
420 - External selector tab
421 - Connector for ext. sel. tab
422 - Pin for external selector tab
456 - Adjustable trigger upper part
458 - Release for external selector
471 - Connector pin for external selector
526 - Pivor for adjustable rib
527 - Lock for adj. rib pivot
6162 - Left hammer for coil springs
6166 - Right and left hammer coil spring
6172 - Sear trop pivot pin
6178 - Link retainer pin
6193 - Plunger for coil springs
21712 - Choke tube (optional)
23190 - Coil springs file
128/12 - Lock pin for top lev. and fir. pin
155B - Trigger guard for double trigger group
156BD - Right trigger for double trigger group
156BS - Left trigger for double trigger group
169/02 - Left sear spring
175/03 - Spring lock pin
212/03 - Front sight
524/05 - Adjustable rib tab 7x7
524/06 - Adjustable rib tab 11x11
525/1 - Spring for adj. rib tab
6161B - Right hammer for coil springs
6226/01 - Choke wrench (optional)
